Once you complete the initial setup, you will be directed to the Main Menu.
This interface provides access to a range of functionalities. In this section, we will focus specifically on the Agent feature.

1. Launching the Agent Interface

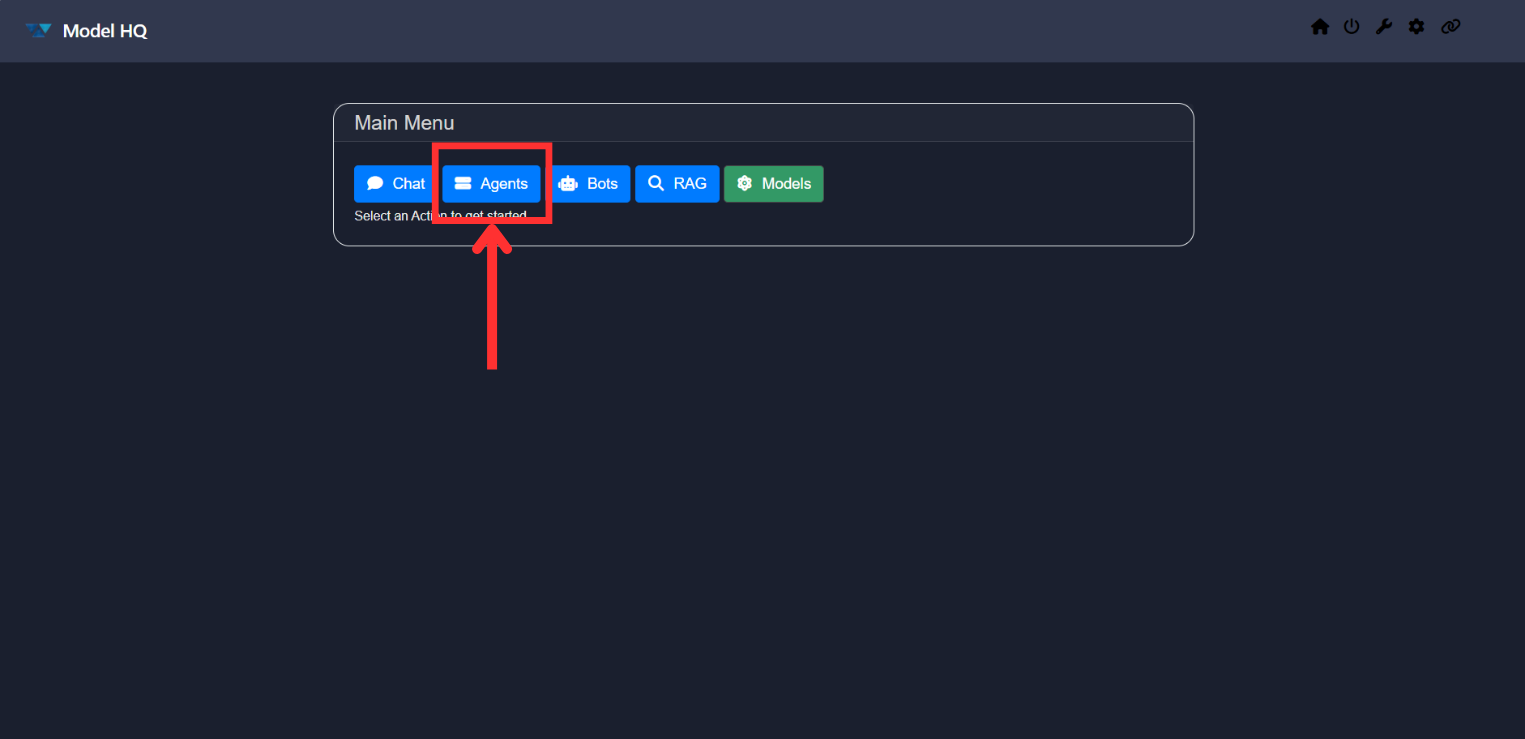

To begin, click on the Agent button from the main menu.

2. Understanding the Agent Menu

Upon entering the Agent interface, you will be presented with a variety of options.

Here is a breakdown of the key components:

1. Options:
   • Build New: Create a new agent from scratch.
   • Load Existing: Load an existing agent, either a pre-created template included in Model HQ or previously built by you.
2. Dropdown: Displays all available agents, including both pre-created and user-created agents.
3. > (Next): Proceeds with the selected agent or action.
4. Edit: Modify or delete an existing agent.
5. Batch Run: Upload files that will be treated as separate input work items and passed one-by-one into the process.
6. 🗑️: Delete an existing agent from the dropdown list.
7. Home: Return to the main menu.

For the purpose of this documentation, we will use the Load Existing option to explore the Agent workflow.

Available Pre-Created Agents in Model HQ:

• Contract Analyzer
• Customer Support
• Financial Data Extractor
• Image Tagger
• Intake Processing
• Research Process

Select any agent from the list and click the > button to continue.
For this walkthrough, we have selected Contract Analyzer which was specifically designed to demonstrate how complex Employment Agreements can be quickly queried using pre-built agents. (Detailed information about this Agent workflow can also be found in LLMWare's YouTube channel- https://youtu.be/FSjpAgIZnPM?si=6UMkLD4HMdXxmxcg)

3. Confirming the Agent

After selection, you will be presented with a confirmation screen summarizing the chosen agent along with a detailed description.

Each agent includes a summary of the processes it will perform. Click the Details button to review these processes.

If the selected agent requires changes, click Exit, return to the previous menu, and use the Edit button to modify the configuration.
(Documentation for editing agents is available separately.)

If everything looks good, proceed by clicking the RUN button.

4. Uploading an Input File

In this step, upload the file that the agent will process. Model HQ includes sample executive employment agreements documents for you to try for this test agent use case in c:\users\{user name}\llmware_data\sample_files\agreements. This sample agent is designed to show how you can query documents using pre-built agents in an automated workflow using one of the provided Executive Employment Agreements as an example.

(The supported file types are .pdf, .pptx, .docx, .txt, and .md.)

This screen is straightforward—simply upload an example file of an Executive Employment Agreement from the file path above and click the > button to proceed.

5. Receiving the Output

Once the file is uploaded, the agent will begin executing the defined workflow automatically.
No further user action is required at this stage.

The agent will process the input and generate the output as defined in its configuration.

6. Inference History

The Inference History table provides detailed logs of each inference performed by the language model, allowing for transparency, performance tracking, and auditing. This is particularly useful for AI-driven contract analysis, customer support, research process, etc.

7. Files Created

This section lists the output files generated by a specific Contract Analyzer Agent. Each file captures a distinct part of the analysis—ranging from visual diagrams to raw metadata and final summaries—making it easier to trace the agent's behavior and audit the results.

Important
In the screenshots above and below, you'll notice the name contract_analyzer being used (as mentioned before). This is because these outputs were generated while testing the Contract Analyzer Agent.


A graphical image that provides a visual representation of the contract analysis process or its extracted structure. It might include hierarchical clause trees, entity relationships, or summary visualizations.

contract_analyzer_mermaid_chart.md

A Markdown file that contains a Mermaid.js diagram definition. This chart helps visually explain the logic, flow, or state transitions followed by the agent during contract analysis.

It looks like this:

flowchart TD
  A[start_agent] -->|start_agent - Starting Process - Setting up Models + Services| B[parse_document]
  B[parse_document] -->|parse_document - parse_document| C[rag_answer]
  C[rag_answer] -->|rag_answer - rag_answer| D[rag_answer]
  D[rag_answer] -->|rag_answer - rag_answer| E[rag_answer]
  E[rag_answer] -->|rag_answer - rag_answer| F[agent_report]
  F[agent_report] -->|agent_report - agent_report| G[END]

contract_analyzer.json

A structured JSON file containing the full set of metadata, entities, or extracted fields identified by the agent. This file is particularly useful for integrations or detailed audits.

{
  "agent": {
    "process_name": "contract_analyzer",
    "display_name": "Contract Analyzer",
    "description": {},
    "node_wrappers": [
      "view_execution"
    ],
    "input_heads": [
      {
        "name": "AddDocumentInputHead",
        "kwargs": {
          "process_name": "contract_analyzer"
        }
      }
    ],
    "reranker_max_samples": 1000,
    "derive_from_process": "",
    "sql_model": "slim-sql-ov",
    "include_source_info": false,
    "rag_answer_model": "llama-3.2-3b-instruct-ov",
    "context_id_list": [
      {
        "context_id": "User-Document",
        "type": "document_file",
        "node": 0,
        "service": "AddDocumentInputHead",
        "value": "",
        "source": "input_head"
      },
      {
        "context_id": "my_contract",
        "type": "doc_source",
        "node": 1,
        "service": "parse_document",
        "value": "my_contract",
        "source": "process"
      },
      {
        "context_id": "my_contract",
        "type": "source",
        "node": 1,
        "service": "parse_document",
        "value": "my_contract",
        "source": "process"
      }
    ],
    "sub_process": null,
    "filter_large_doc_state": true,
    "chat_model": "llama-3.2-3b-instruct-ov",
    "install_agent_files": [],
    "global_named_vars_list": [
      {
        "key": "rag_answer_2",
        "value": "",
        "service": "rag_answer",
        "node": 2
      },
      {
        "key": "rag_answer_3",
        "value": "",
        "service": "rag_answer",
        "node": 3
      },
      {
        "key": "rag_answer_4",
        "value": "",
        "service": "rag_answer",
        "node": 4
      }
    ],
    "auto_optimize": true,
    "api_exec": false,
    "preload_models": true,
    "library_search_results": 20,
    "process_inputs": [
      [
        "User-Document",
        "document_file"
      ]
    ],
    "compare_or_aggregate_mode": "aggregate",
    "rag_compare_instruction": "Attached are several sources - please use as the basis for answering questions, and cite the specific source, if used, in generating your answer.\n",
    "chat_instruction": "",
    "max_output": 1000,
    "test_input": "",
    "api_key": null,
    "api_endpoint": {},
    "answer_model": "bling-tiny-llama-ov",
    "text_chunk_size": 600,
    "rag_aggregate_instruction": "",
    "wiki_article_count": 3,
    "context_target_size": 500,
    "context_top_n": 3
  },
  "controls": {
    "check_hash": true,
    "sensitive": [],
    "classifiers": [],
    "exclusion_list": [],
    "invisible_text": false
  },
  "report_configs": {
    "tech_report": {
      "format": "docx",
      "elements": [
        "report",
        "report_commentary",
        "research_list",
        "response_list",
        "safety_record",
        "usage_history",
        "inference_history"
      ]
    },
    "report_types": [
      "Technical"
    ],
    "take_aways": {},
    "compliance_report": {
      "format": "docx",
      "elements": [
        "report",
        "research_list",
        "response_list",
        "scratch_pad",
        "journal"
      ]
    },
    "business_report": {
      "format": "docx",
      "elements": [
        "report",
        "report_commentary"
      ]
    }
  },
  "process": {
    "node0": {
      "service": "parse_document",
      "inputs": {
        "doc_source_name": "my_contract",
        "fp": "{{User-Document}}"
      }
    },
    "node1": {
      "service": "rag_answer",
      "inputs": {
        "query": "When is the effective date of the executive employment agreement?",
        "doc_state": "{{my_contract}}"
      }
    },
    "node2": {
      "service": "rag_answer",
      "inputs": {
        "query": "What is the annual rate of the base salary?",
        "doc_state": "{{my_contract}}"
      }
    },
    "node3": {
      "service": "rag_answer",
      "inputs": {
        "query": "How many vacation day?",
        "doc_state": "{{my_contract}}"
      }
    },
    "node4": {
      "service": "agent_report",
      "inputs": {
        "title": "Contract Analysis Report"
      }
    },
    "node5": {
      "service": "END"
    }
  }
}

agent_process_report_technical.docx

This is a technical report in Word format that documents the internal workings of the agent. It includes inference logic, model details, parameters used, and evaluation outcomes.

contract_analyzer_take_aways.txt

A plain text summary containing the key findings from the contract. It includes every detail of the agent workflow in text format stating everything happened in a particular step.

Checkout here: TEXT OUTPUT

contract_analyzer_take_aways.json

A machine-readable version of the takeaways file. This JSON structure makes it easier to import the key insights that are generated by running this agent. It also contains the same information as of contract_analyzer_take_aways.txt but just in JSON format.

Checkout here: JSON OUTPUT

8. Exiting Agents

Once the Agent workflow is complete, scroll to the bottom of your screen to either 'Run Again' which will run the process again or click on '🛖' icon to exit and return to the Main Menu.

Conclusion

This concludes the walkthrough of the Agent interface in Model HQ.
In subsequent sections, we will explore how to build, edit and customize your own agents from scratch or run the workflow in batches (run multiple documents at once). Please go to the Creating New Agent, Edit Agent or Batch Run Sections of this documentation.

If you have any questions or feedback, please reach out to us at support@aibloks.com.
